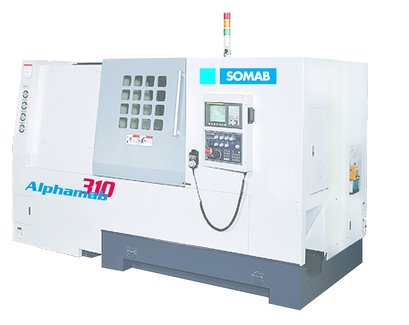

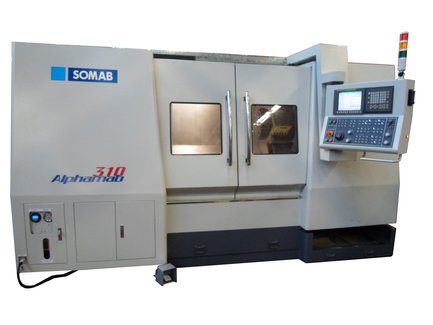

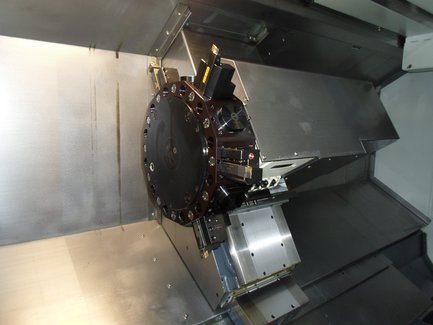

Alphamab 310Y
4 axes production lathe
45° slant bed in cast iron
with 4 prismatic dlides
Assembled in Asia
Caractéristiques | ALPHAMAB 310 Y |
ALPHAMAB 320 Y |
ALPHAMAB 320 |
ALPHAMAB 336 |
Axis number | 4 | 4 | 2 -> 3 | 2 -> 3 |
Capacity | ||||
Swing other bed (mm) | 600 | 600 | 680 | 800 |
Swing other saddle (mm) | 380 | 380 | 470 | 630 |
Max machining Ø between centers | 300 | 320 | ||
Distance between centers | 780/1300 | 1200/1700 | 2200/3200 | 1200/2200/3200 |
Max. machining length | 500/1030 | 950/1450 | ||
Travels | ||||
Longitudinal Z travel (mm) | 550/1080 | 1000/1500 | 2090/3080 | 1090/2090/3090 |
Transversal X travel (mm) | 225 | 225 | 280 | 335 |
Perpendicular Y travel (mm) | 120 | 120 | - | - |
Spindle | ||||
Spindle nose (mm) | A2 6" | A2 8" | A2 8" | A2 11" |
spindle bore (mm) | 62 | 87 | 87 | 131 |
spindle sped (rpm) | 4500 | 3500 | 3200 | 2000 |
Power (kW) | 15/18 | 15/26 | 28/42 | 28/42 |
Gearbox | - | - | - | 2 speeds |
C axis | continuous | continuous | continuous* | continuous* |
Chuck | ||||
Chuck Ø (mm) | 210 | 254 | 305 | 380 |
Internal free Ø (mm) | 51 | 77 | 77 | 115 |
Automatic turret | ||||
Stations number | 12 | 12 | 12 | 12 |
Attachment tpe | VDI 40 | VDI 40 | rest plates | rest plates |
Rotating tools stations | 12 | 12 | 12x VDI 40* | 12x VDI 50* |
Rotating tools speed | 4000 | 4000 | 4000* | 4000* |
Rotating tools power (kW) | 7 | 7 | 10* | 15/25* |
Tailstock | MK4 | MK4 | MK5 | MK6 |
Tailstock insert Ø (mm) | 85 | 110 | 110 | 150 |
Tailstock stroke (mm) | 80 | 100 | 100 | 130 |
Dimensions | ||||
Width (mm) | 2300 | 2480 | 2150 | 2435 |
Height (mm) | 2400 | 2400 | 1940 | 2440 |
Length with chip conveyor (m) | 4,7 / 5,2 | 5,25 / 5,75 | 6 / 7 | 5 / 6 / 7 |
Weight (T) | 6,6 / 7 | 7,7 / 8,6 | 8,9 / 10 | 9,6/11/13,4 |
* Option |
