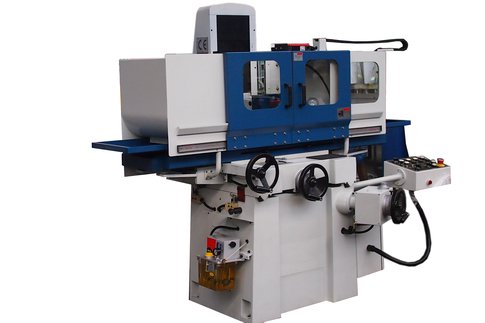

KGS 1020 AHD
Back
KGS 1020 AHD
| Characteristics | RECTIFIEUSE KGS 1020 AHD |
|
RECTIFIEUSE KGS 84 AHD | RECTIFIEUSE KGS 510 AHD |
|
| Travels | |||||
| Longitudinal travel (mm) | 560 | 710 | 910 | 1140 | |
| Cross travel (mm) | 275 | 340 | 450 | 540 | |
| Distance spindle-center/table (mm) | 490 | 600 | 600 | 575 | |
| Table | |||||
| Table area (mm x mm) | 500 x 250 | 600 x 300 | 800 x 400 | 1000 x 500 | |
| Tee groove (width x number) | 14 x1 | 14 x1 | 14 x3 | 16 x3 | |
| magnetic plate maximum load | 250 | 420 | 700 | 1000 | |
| motions | |||||
| Longitudinal velocity (m/min) | 5 -> 25 | 5 -> 25 | 5 -> 25 | 7 -> 25 | |
| Table transverval step (mm) | 0,25 -> 12 | 0,25 -> 20 | 0,25 -> 20 | 0,25 -> 20 | |
| Vertical step (mm) | 0.02 | 0.025 | 0.025 | 0.04 | |
| Grindstone | |||||
| External diameter (mm) | 180 | 355 | 355 | 2 speeds | |
| Width (mm) | continuous | continuous | continuous | continuous | |
| Grindstone bore (mm) | 31.75 | 127 | 127 | 127 | |
| Grinding spindle | |||||
| spindle speed (rpm) | 2850 | 1450 | 1450 | 1450 | |
| Motor Power (kW) | yes | yes | 5.6 | 5.6 | |
| Dimensions | |||||
| Width (mm) | 2100 | 2600 | 3600 | 4445 | |
| Depth (mm) | 1800 | 2500 | 2600 | 2100 | |
| Height (mm) | 1775 | 1830 | 1875 | 2400 | |
| Weight (kg) | 1430 | 1750 | 2800 | 5000 | |
