Optimab 350 lathe

Back

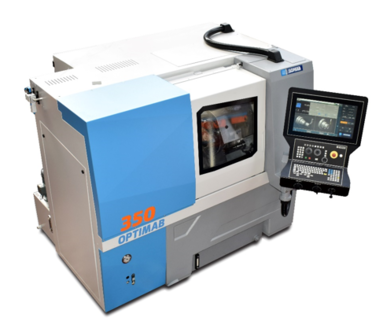

Optimab 350 lathe

Universal 60° slant bed lathe
Bed in reconstituted granite on monobloc base
Two prismatic guides on longitudinal and transverse axis
Digital motorisation of axes with absolute encoders

Cartridge spindle with super precision ball bearings, lubricated for life.

Chuck and tailstock (manual, pneumatic or hydraulic)
Automatic turret
Grinded ballscrews and double nut

Sliding and swiveling console

>> Specifications

OPTIMAB range (pdf)

Characteristics	OPTIMAB 250	OPTIMAB 350	OPTIMAB 450	OPTIMAB 550	OPTIMAB 700	OPTIMAB 900
Capacity
Swing over bed (mm)	350	410	500	620	750	930
Swing over cross slide (mm)	220	290	320	430	520	690
Distance between centers (mm)	550	730	1100	1500	1750/2500/3300	1750/2500/3300
Travels
Z axis longitudinal travel (mm)	500	550	950	1300	1450/2200/3000	1450/2200/3000
X axis transversal travel (mm)	160	200	240	330	435	510
Y axis travel on option (mm)	-	-	30	50	-	-
Spindle
Spindle nose (mm)	Ø140	6"	8"	8"	11"	11"
Spindle bore (mm)	54	52	73	105	120	120
Maximum spindle speed (rpm)	5000	5000	4500	3200	2000	1300
Spindle power (kW)	7,5/11	9/10	20/30	22/33	28/43	30/45
Gearbox	-	-	-	option	2 speeds	2 speeds
C axis (annular encoder)	continuous	continuous	continuous	continuous	continuous	continuous
Automatic turret
Number of tool stations	12	12	12	12	12	12
Tool suport type	VDI 20	VDI 30	VDI 30	VDI 40	VDI 50	VDI 60
Live tools option	option	option	option	option	option	option
Live tool rotation speed (rpm)	5000	5000	5000	4000	4000	3000
Live tool power (kW)	4	4	4	7	15	15
Chuck
Manual chuck (mm)	200	200	250	315	400 (500)	400 (500)
Chuck hole Ø (mm)	55	55	73	95	128 (165)	128 (165)
Automatic chuck (mm)	160 (210)	160 (210)	230	280 (315)	350 (400-500)	350 (400-500)
Hole Ø for automatic version	42,6	42,6	51-63	95	95 (118-180)	95 (118-180)
Dimensions machine
Height (mm)	1700	1850	1970	2000	2460	2460
Width (mm)	1500	1600	1800	2000	2480	2480
Length with chip tray (mm)	2000	2000	2770	3400	-	-
Length with chip evacuator (mm)	3100	2900	4300	4900	5650/6400/7200	5650/6400/7200
Weight (kg)	2600	3400	5300	7500	7500/8500/10500	7500/8500/10500

EQUIPMENT

Chuck with 3 concentric jaws
Tailstock MK3
Automatic turret VDI 30, 12 stations
Cartridge spindle with super Precision ball bearings, lubricated for life.
Grinded ballscrews and double nut
Sliding and swiveling console
1 or 2 hand wheels
A chip tray with discharge to the right of the machine.
3.3 bar coolant system
Sliding front door and security lock for full protection
interior lighting

OPTIONS:

LIVE TOOLS and C AXIS
manual, pneumatic or hydraulic version (chuck and tailstock)
Chip conveyor
clamping plier chuck
Work-piece collector
Bar pulling system
Bar feeder
MULTIFIX manual turret E type
Fix steady rest with 3 rollers for Ø5mm to 90mm
Fix steady rest with 3 rollers for Ø60mm to 150mm

DELIVERABLE:

isolation transformer
toolholders
clamping pliers

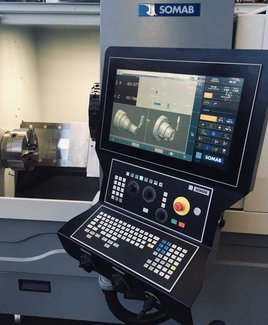

CNC Learning SOMAB PL + S VT

15" color LCD flat touch screen
QWERTY alphanumeric keyboard
Two handwheels
Rigid tapping (fixed tools and rotating tools)
USB connections on front panel
Connection to ETHERNET network with RJ 45, 3 operating modes

conversationally
Learning Mode Manual
ISO mode

4 Gb Memory
Tools Library
Visualization of cutting forces - oscilloscope
working with .dxf files

ALTERNATIVES:

Joint NUM POWER control and SOMAB PL+S5

12" TFT flat color screen
Full QWERTY alphanumeric keyboard
Keyboard with SOMAB PL+S5 pre-programmed keys
Two handwheels
Rigid tapping in ISO mode (for fixed tools only)

NUM CNC POWER

12" TFT flat color screen
Full QWERTY alphanumeric keyboard
a switchable electronic handwheel
Rigid tapping (for fixed tools only)

SIEMENS 840D sl with Conversational SHOPTURN

10.4" TFT flat color screen
Full QWERTY alphanumeric keyboard
An electronic handwheel
Rigid tapping for fixed and rotating tools
USB connections on front panel
Connection to ETHERNET network with RJ 45
SHOPTURN Pack software, including:

3 D simulation,
Real-time simulation
Remaining material recognition
