Optimab 450 lathe
Back

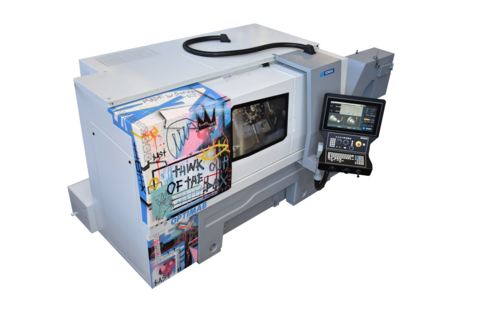

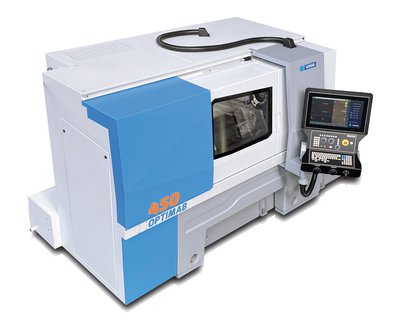

Optimab 450 lathe
Universal 60° slant bed lathe
Bed in reconstituted granite on monobloc base
Two prismatic guides on longitudinal and transverse axis
Digital motorisation of axes with absolute encoders
Y axis (option)
Cartridge spindle with super precision ball bearings, lubricated for life.
Chuck and tailstock (manual, pneumatic or hydraulic)
Automatic turret
Grinded ballscrews and double nut
Sliding and swiveling console
| Characteristics | OPTIMAB 250 |
OPTIMAB 350 |
OPTIMAB 450 |
OPTIMAB 550 |
OPTIMAB 700 |
OPTIMAB 900 |
| Capacity | ||||||
| Swing over bed (mm) | 350 | 410 | 500 | 620 | 750 | 930 |
| Swing over cross slide (mm) | 220 | 290 | 320 | 430 | 520 | 690 |
| Distance between centers (mm) | 550 | 730 | 1100 | 1500 | 1750/2500/3300 | 1750/2500/3300 |
| Travels | ||||||
| Z axis longitudinal travel (mm) | 500 | 550 | 950 | 1300 | 1450/2200/3000 | 1450/2200/3000 |
| X axis transversal travel (mm) | 160 | 200 | 240 | 330 | 435 | 510 |
| Y axis travel on option (mm) | - | - | 30 | 50 | - | - |
| Spindle | ||||||
| Spindle nose (mm) | Ø140 | 6" | 8" | 8" | 11" | 11" |
| Spindle bore (mm) | 54 | 52 | 73 | 105 | 120 | 120 |
| Maximum spindle speed (rpm) | 5000 | 5000 | 4500 | 3200 | 2000 | 1300 |
| Spindle power (kW) | 7,5/11 | 9/10 | 20/30 | 22/33 | 28/43 | 30/45 |
| Gearbox | - | - | - | option | 2 speeds | 2 speeds |
| C axis (annular encoder) | continuous | continuous | continuous | continuous | continuous | continuous |
| Automatic turret | ||||||
| Number of tool stations | 12 | 12 | 12 | 12 | 12 | 12 |
| Tool suport type | VDI 20 | VDI 30 | VDI 30 | VDI 40 | VDI 50 | VDI 60 |
| Live tools option | option | option | option | option | option | option |
| Live tool rotation speed (rpm) | 5000 | 5000 | 5000 | 4000 | 4000 | 3000 |
| Live tool power (kW) | 4 | 4 | 4 | 7 | 15 | 15 |
| Chuck | ||||||
| Manual chuck (mm) | 200 | 200 | 250 | 315 | 400 (500) | 400 (500) |
| Chuck hole Ø (mm) | 55 | 55 | 73 | 95 | 128 (165) | 128 (165) |
| Automatic chuck (mm) | 160 (210) | 160 (210) | 230 | 280 (315) | 350 (400-500) | 350 (400-500) |
| Hole Ø for automatic version | 42,6 | 42,6 | 51-63 | 95 | 95 (118-180) | 95 (118-180) |
| Dimensions machine | ||||||
| Height (mm) | 1700 | 1850 | 1970 | 2000 | 2460 | 2460 |
| Width (mm) | 1500 | 1600 | 1800 | 2000 | 2480 | 2480 |
| Length with chip tray (mm) | 2000 | 2000 | 2770 | 3400 | - | - |
| Length with chip evacuator (mm) | 3100 | 2900 | 4300 | 4900 | 5650/6400/7200 | 5650/6400/7200 |
| Weight (kg) | 2600 | 3400 | 5300 | 7500 | 7500/8500/10500 | 7500/8500/10500 |
EQUIPMENT
- Chuck with 3 concentric jaws
- Tailstock MK4
- Automatic turret VDI 30, 12 stations
- Cartridge spindle with super Precision ball bearings, lubricated for life.
- Grinded ballscrews and double nut
- Sliding and swiveling console
- 1 or 2 hand wheels
- A chip tray removale from front part of the machine.
- 3.3 bar coolant system
- Sliding front door and security lock for full protection
- interior lighting
OPTIONS:
- LIVE TOOLS and C AXIS
- Y axis with 30mm stroke (±15mm absolute)
- manual, pneumatic or hydraulic version (chuck and tailstock)
- Chip conveyor
- clamping plier chuck
- Work-piece collector
- Bar pulling system
- Bar feeder
- Turret:
- MULTIFIX manual turret C type
- with VDI 30 and rest plates
- VDI 40, 8 stations
- Fix steady rest with 3 rollers for Ø20mm to 120mm
- Fix steady rest with 3 rollers for Ø80mm to 200mm
DELIVERABLE:
isolation transformer
toolholders
clamping pliers

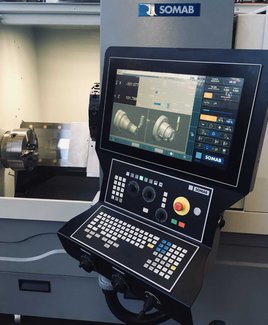

CNC Learning SOMAB PL + S VT
- 15" color LCD flat touch screen
- QWERTY alphanumeric keyboard
- Two handwheels
- Rigid tapping (fixed tools and rotating tools)
- USB connections on front panel
- Connection to ETHERNET network with RJ 45, 3 operating modes
- conversationally
- Learning Mode Manual
- ISO mode
- 4 Gb Memory
- Tools Library
- Visualization of cutting forces - oscilloscope
- working with .dxf files
ALTERNATIVES:
Joint NUM POWER control and SOMAB PL+S5
- 12" TFT flat color screen
- Full QWERTY alphanumeric keyboard
- Keyboard with SOMAB PL+S5 pre-programmed keys
- Two handwheels
- Rigid tapping in ISO mode (for fixed tools only)
or
NUM CNC POWER
- 12" TFT flat color screen
- Full QWERTY alphanumeric keyboard
- a switchable electronic handwheel
- Rigid tapping (for fixed tools only)
or
SIEMENS 840D sl with Conversational SHOPTURN
- 10.4" TFT flat color screen
- Full QWERTY alphanumeric keyboard
- An electronic handwheel
- Rigid tapping for fixed and rotating tools
- USB connections on front panel
- Connection to ETHERNET network with RJ 45
- SHOPTURN Pack software, including:
- 3 D simulation,
- Real-time simulation
